Big bag unloading station with 2 flexible discharge screws
| Product: | Big Bag Discharger |
|---|---|
| Product No.: | 26.177A4266 |
| Status: | Used |
| Location: | Swifterbant |
| Delivery time: | In stock |

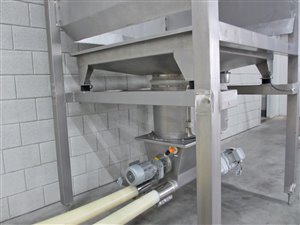

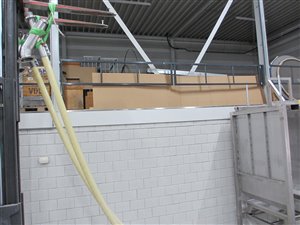

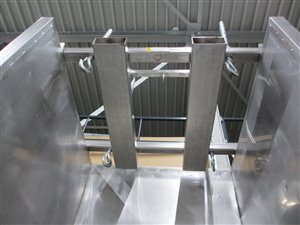

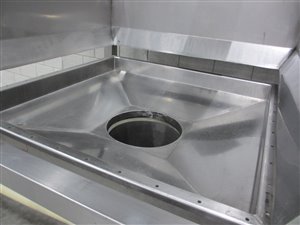

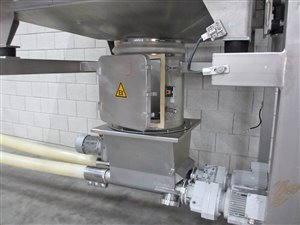

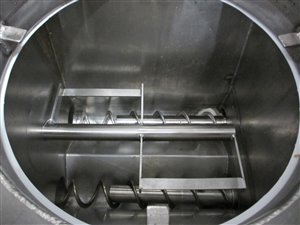

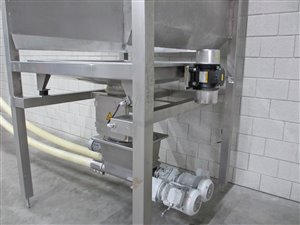

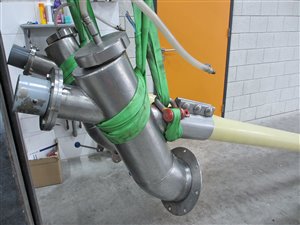

7x Big Bag Discharger, Emde, BE 1500 S, support table with vibration function via vibratory motor and discharge opening of 400 mm Ø, under the support table a hinged hatch with opening switch to open the big bag, underneath a rotating agitator to break up clods and prevent bridging, equipped with 2 Emde MD-Lift MDB 80 flexible discharge/elevating screws, discharge height 5.6 m (screw length easy to shorten), DN 125 outlet with flange, the direction of the screws is adjustable, on top of the screws a removable nozzle for wet cleaning of the screws, under the screws there is a drain, including lifting beam with adjustable hooks for hanging the big bag in the station with a forklift truck (load capacity 1500 kg), height between underside of hook and support table is 1900 mm, dimensions of discharge station 146 x 146 x 336 cm (lxwxh), used in the food industry (ingredients for desserts)
