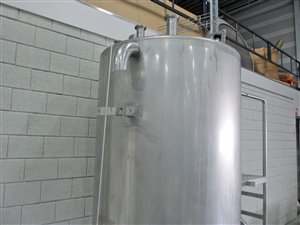

stainless steel tank 1600 liter with steps and platform
| Product: | Stainless Steel Tank |
|---|---|
| Product No.: | 3.8A4144 |
| Status: | Used |
| Location: | Swifterbant |
| Delivery time: | In stock |

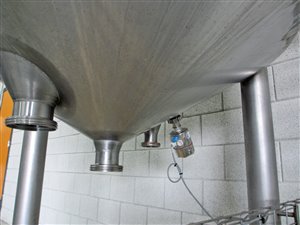

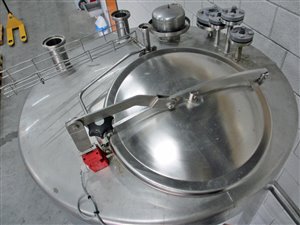

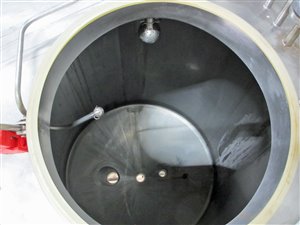

1x Stainless Steel Tank, capacity 1600 liters, a 500 mm Ø manhole with safety lock on top of the tank, 3x 20 mm Ø flanged connections, 1x 40 mm Ø flanged connection, 1x 50 mm Ø threaded connection, 1x 60 mm Ø threaded connection, 1 x 75 mm Ø threaded connection, 2 spray balls inside the tank for CIP cleaning, an overflow at the top of the cylinder, conical bottom with 75 mm Ø threaded outlet in the centre (total drain), 1x 50 mm Ø threaded outlet, 1x 100 mm Ø threaded outlet, E+H level sensors at the bottom and top of the tank, product-contact parts made of AISI 316 (1.4401) stainless steel, upright design with 3 stainless steel legs fitted with levelling feet, a staircase with landing is attached to the tank, tank 120 cm Ø, cylindrical height 142 cm, total height 285 cm, used for permeate/CIP in the food industry
