2500 litre weighing silo with 2000 litre buffer silo
| Product: | Stainless Steel Silo |
|---|---|
| Product No.: | 3.9A4274 |
| Status: | Used |
| Location: | Swifterbant |
| Delivery time: | In stock |

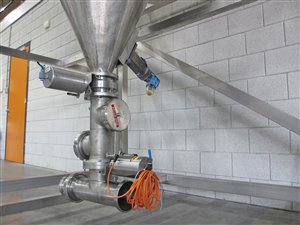

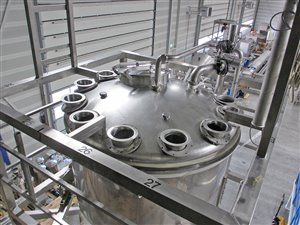

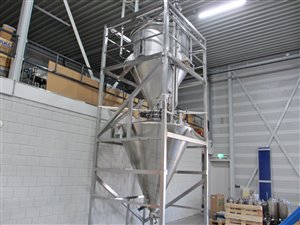

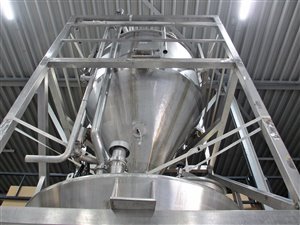

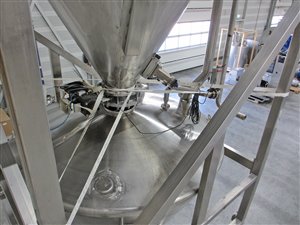

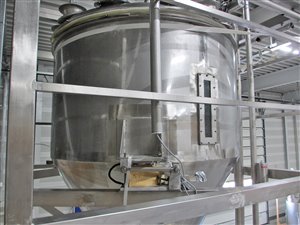

1x Stainless Steel Silo, Thrun Maschinen- u. Behälterbau, 1x 2500 litre weighing silo; on top of the silo 12x 150 mm Ø connection with flange, 1x 500 mm Ø manhole, 3x 1” connection with dairy thread and blind nut, in the tank a CIP/spray nozzle, in the cylinder a 36x6 cm sight glass, the cone is equipped with 2 pneumatic bunker knockers, outlet with DN 250 electro-pneumatically operated butterfly valve, the silo is weighed by 3 weighing cells of 500 kg, 1x 2000 litre silo/hopper for supply to production; on top of the silo 1x filling opening from the weighing silo, 1x 420 mm Ø manhole, 1x vent, 1x 200 mm Ø connection with Jacob flange edge, CIP/spray ball in the tank, the cone is equipped with a pneumatic bunker knocker, outlet with 100 mm pneumatically operated butterfly valve, the tops of both silos are connected to each other with an 80 mm pipe with dairy couplings, the CIP spray nozzles include connecting piping with shut-off valves, total dimensions 200 x 215 x 660 cm (LxWxH), used in the food industry (ingredients for desserts)
