Ystral C 22.000 S Conti-TDS-3 inline disperser
| Product: | Disperser |
|---|---|
| Product No.: | 1.113A4437 |
| Status: | Used |
| Location: | Swifterbant |
| Delivery time: | In stock |

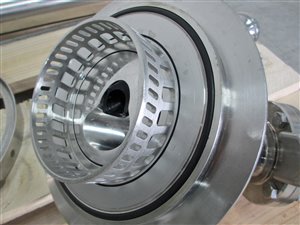

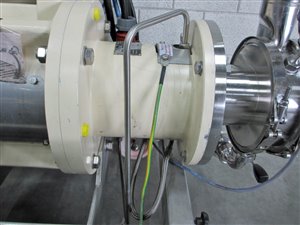

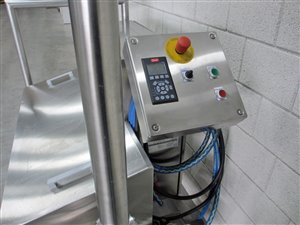

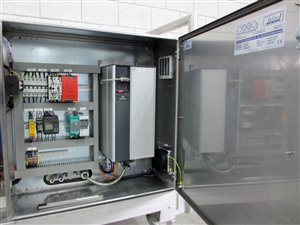

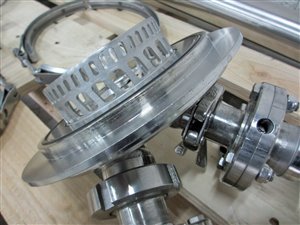

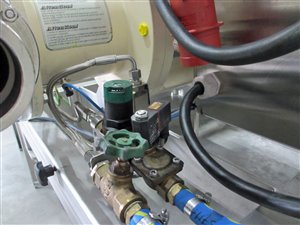

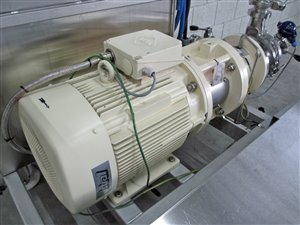

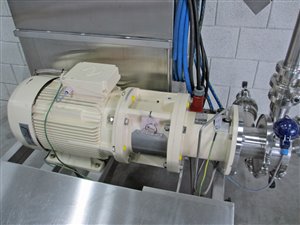

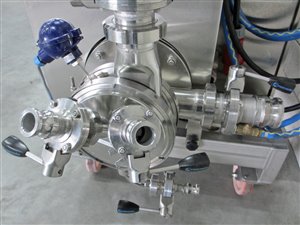

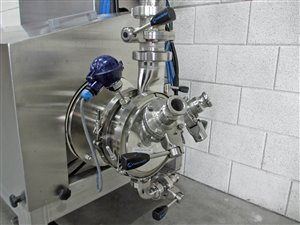

1x Disperser, Ystral, C 22.000 S Conti-TDS-3, designed for ATEX category Ex II 2D/-c T135°C X (indoor/outdoor), stainless steel control panel, 22 kW, nominal speed 3000 rpm, adjustable speed 600 - 3600 rpm, fitted with a freewheel clutch to interrupt the drive in the event of overload (prevents damage to the machine if foreign objects enter), liquid inlet and outlet DN 65 milk coupling (DIN 11851) and fitted with butterfly valve and Camlock connection, drainage outlet DN 25 milk coupling (DIN 11851) and fitted with butterfly valve and Camlock connection, 2 powder inlets; powder inlet 1 DN 40 milk coupling (DIN 11851) fitted with a butterfly valve and Camlock connection, powder inlet 2 DN 32 clamp connection fitted with a butterfly valve and Camlock connection, powder inlet 2 in a special version for the installation of replaceable Teflon inserts for the processing of highly sticky powders, product contact parts made of AISI 316L stainless steel (1.4404), double mechanical seal with WE100 flow monitoring system, cooling and lubrication of the mechanical seals using clean, filtered tap water, assembled on a mobile stainless steel machine frame, stainless steel cover over the motor, used for the dust-free feeding, wetting and direct dispersion of powders (pigments) in liquids
