Emde BE 1500 Big bag discharge station

| Product: | Big Bag Discharger |
|---|---|
| Product No.: | 26.177A4291 |
| Status: | Used |
| Location: | Swifterbant |
| Delivery time: | In stock |

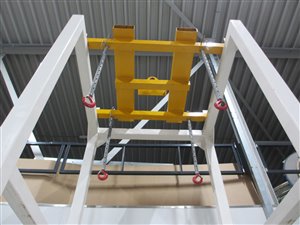

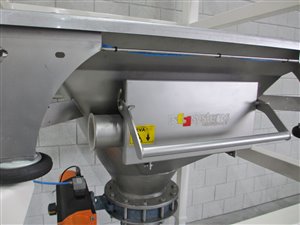

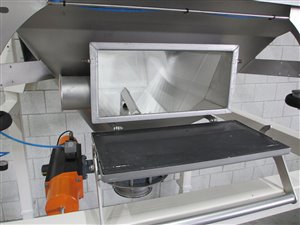

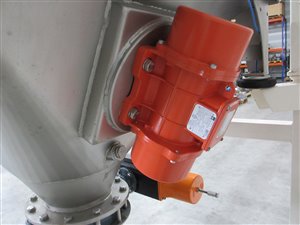

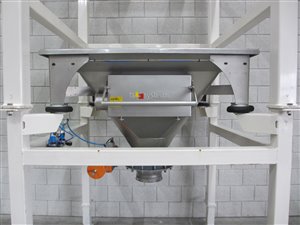

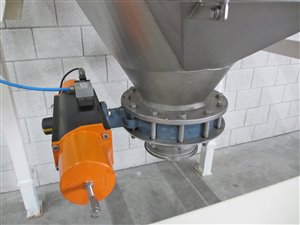

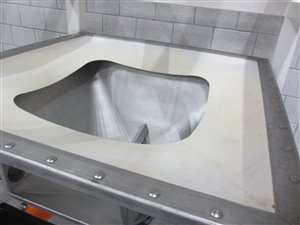

1x Big Bag Discharger, Emde, BE 1500, big bag support table equipped with a rubber membrane for dust sealing, support table equipped with 0.62 kW Oli Vibra vibration motor Ex II 2D Ex tb IIIC Tx Db IP66, pneumatic vibration dampers, hinged hatch in the support table for access to the big bag to open it, equipped with connection for dust extraction, preparation for a level switch in the hopper under the support table, Ebro DN 250 electro-pneumatically operated stainless steel butterfly valve Ex II 2G Ex h IIC T6 Gb / II 2D Ex h IIIC T80°C Db, under the valve a reducer to 200 mm Ø, product contact parts made of stainless steel AISI 304 (1.4301), including lifting beam with adjustable hooks for hanging the big bag in the station with a forklift truck (load capacity 1000 kg), dimensions 160 x 147 x 452 cm (LxWxH)
